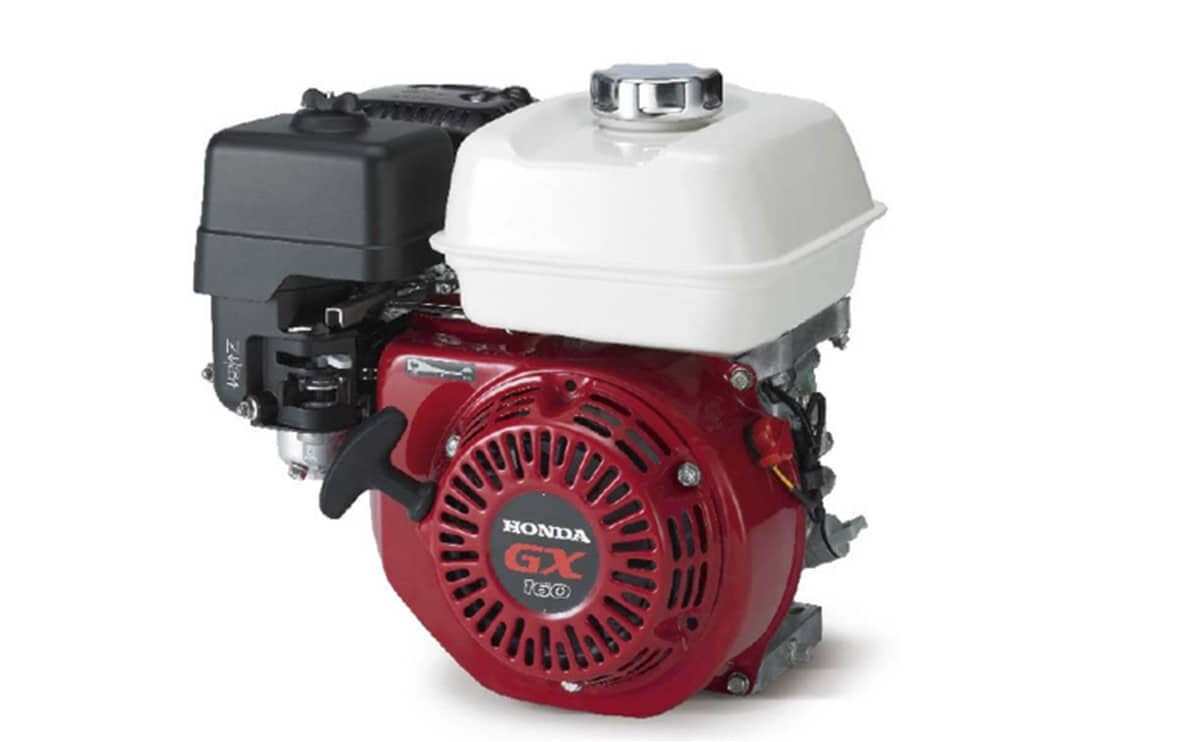

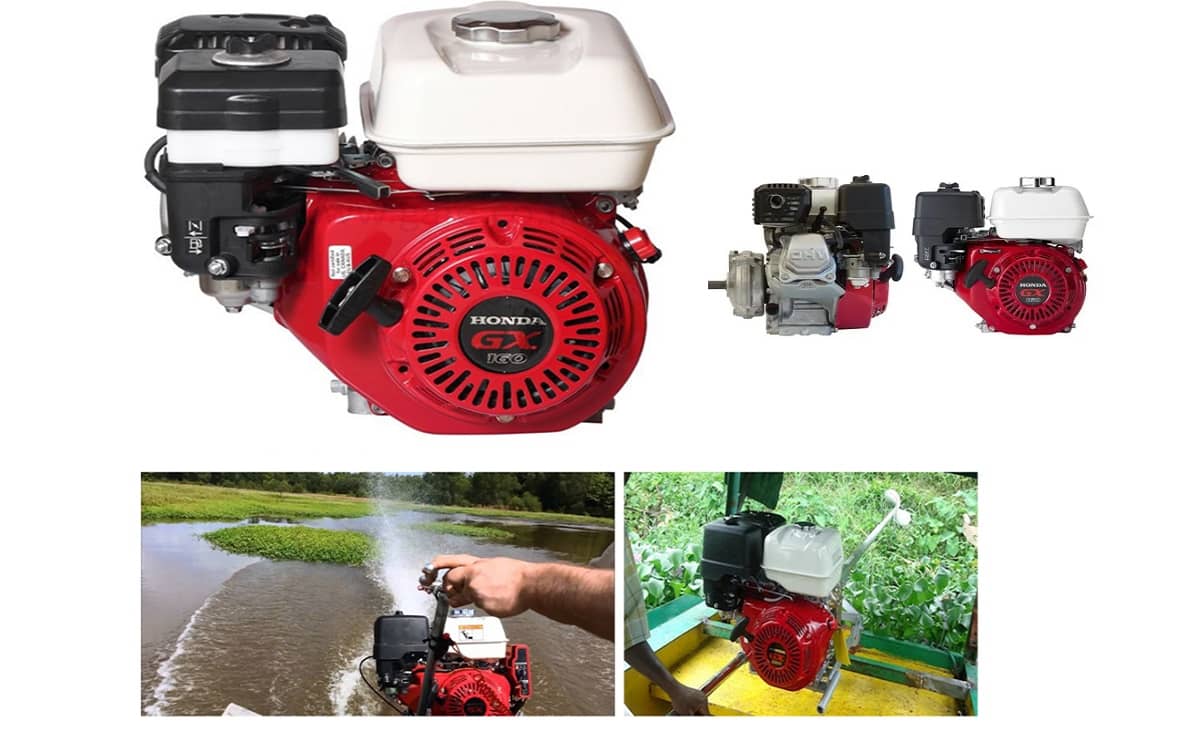

Honda GX160 engine 4.8hp petrol 4 stroke 163cc model general purpose engine for agriculture and constructions



Honda GX160 engine 4.8hp petrol 4 stroke model general purpose engine for agriculture and constructions

Honda GX160 engine offers improved fuel economy, lower noise levels, lower vibration, and lower emissions without sacrificing power output or performance. Precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency.

  • OHV design enhances combustion efficiency
  • High power-to-displacement ratio
  • Easy starting with an automatic decompression system and an easy-to-grip soft recoil starter handle
  • High quality materials and purpose-built components which ensure reliable, long-term use
  • Meets world’s most stringent environmental legislation
  • Low fuel and oil consumption
  • Reduced vibration and noise levels

Specifications of honda gx160 engine :

Product CodeGX160
Product TypeGeneral Purpose Engine
Engine Type4-stroke single cylinder, OHV petrol engine, 25° inclined cylinder, Horizontal shaft
Cylinder Sleeve TypeCast iron sleeve
Bore X Stroke68 x 45 mm
Displacement163 cm³
Compression Ratio9.0 : 1
Net Power3.6 kW ( 4.8 HP ) / 3600 rpm
Cont Rated Power2.5 kW ( 3.4 HP ) / 3000 rpm, 2.9 kW ( 3.9 HP ) / 3600 rpm
Max. Net Torque10.3 Nm / 1.05 kgfm / 2500 rpm
Ignition SystemTransistorised
StarterRecoil (el. start optional)
Fuel Tank Capacity3.1 Liter
Fuel Cons. At Cont. Rated Power1.4 L/h – 3600 rpm
Engine Oil Capacity0.6 Liter
Dimensions (L X W X H)312 x 362 x 346 mm
Dry Weight15.1 kg


6 Months

Package Includes :

  • Honda GX 160 Engine  x 1No
  • Tool kit
  • manual book

Weight30000 g
