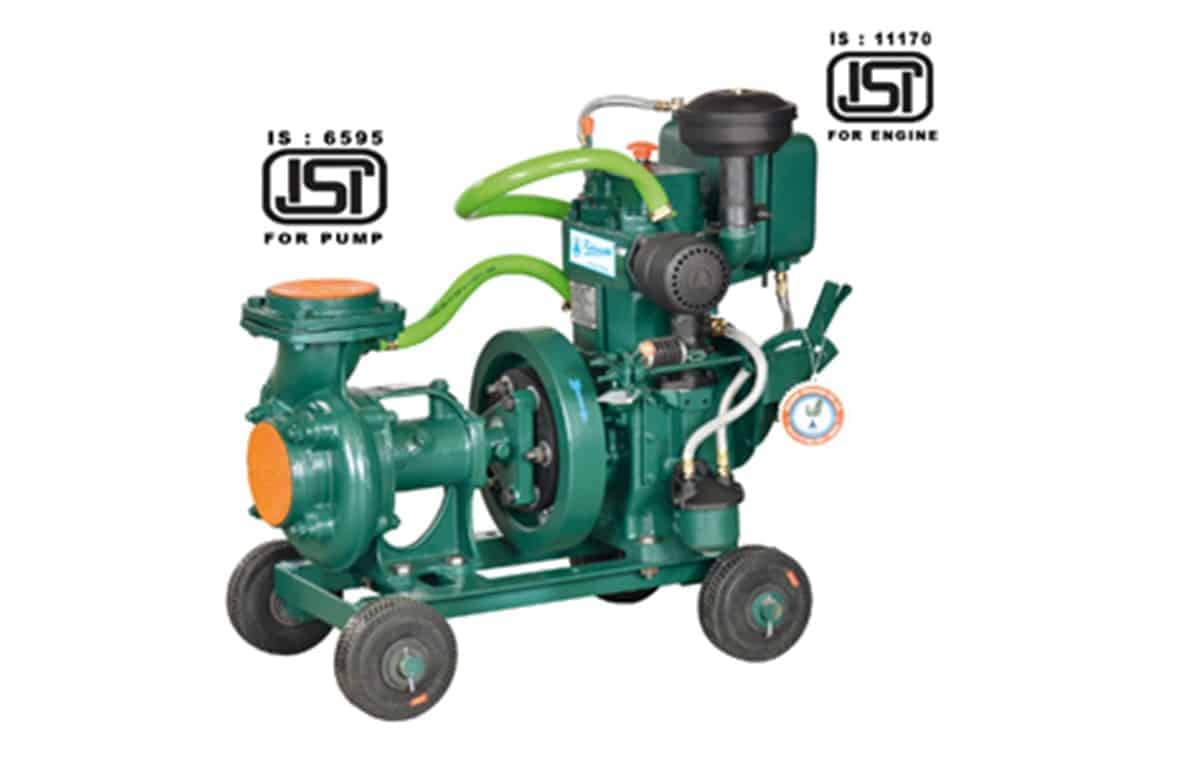

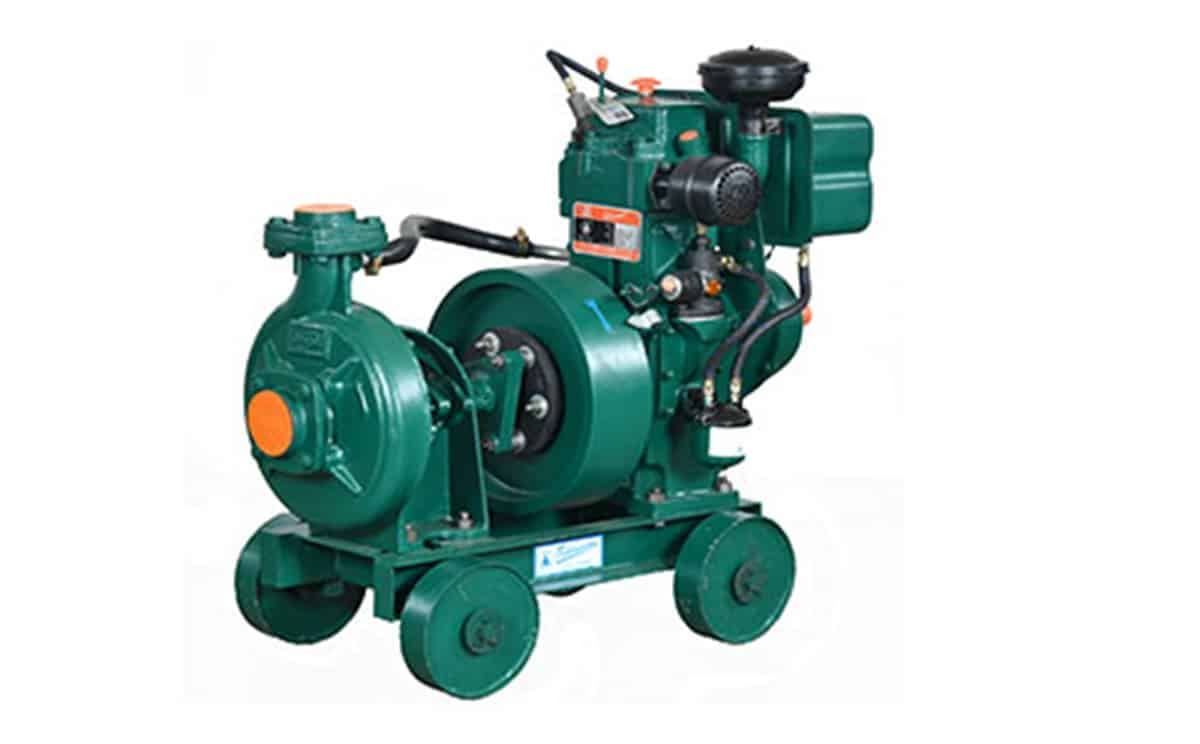

Diesel engine water pump 5HP kasturi heavy duty water cooled engine for agricultural and industrial applications
Diesel engine water pump is used to provide a continuous supply of water to industrial/commercial establishments, houses, hospitals, aquariums, agriculture etc.
Specifications of Diesel engine water pump:
Model Name/Number
FMW 80
Engine Horsepower
5 HP
Power Source
Diesel
Gross Weight
96 Kg
Pump Size
3×3 inch
Motor Speed
2600 RPM
Pump Type
Gland and oil seal
Brand
kasturi
Fuel Consumption
270 gm/kWh
Cooling Method
Water Cooled
Country of Origin
Made in India
Material
Mild Steel
No of Wheels
4
Oil sump capacity
1.20 L
Grade of oil
SAE 20 W 40
Method of starting
Handle
Engine Net Wt
58.5 kg
Engine Dimension
377 x 415 x 551 mm
Head Range
10 m
Discharge Range
15 LPS
Efficiency
66%
Features :
Type: 5 hp agriculture water pump Vertical, totally Enclosed, Water Cooled, Single Cylinder, Four Stroke Cycle, Compression Ignition, Cold Starting Diesel Engine.
Engine Combustion: Direct Fuel Injection in Open Type Combustion Chamber Provided In an Aluminum Piston Crown In Combination With Long Stem Multi hole Nozzle; results In Low Fuel Consumption and Easy Starting.
Lubrications: 5 hp agriculture water pump Force Feed Lubrications By Plunger Type Pump Incorporating Full Flow Filter To Large End Bearing. Main Bearings, being Taper Roller Type Need No Separate Supply. Other Moving Parts are Splash Lubricated.
Cylinder Head: High Grade Cast Iron with Smooth Air & Exhaust Ports Clear Water Jackets For Perfect Cooling.
Cylinder Liner: Special Grade High Wear Resistant Cast Iron.
Rotation: Standard Rotation Is Clockwise When Looking At The Flywheel End.
Cooling: Engine Cooling Can Be Arranged By Run Through Water System Or Cooling Tank.
Drive: Standard Power Take Off If From Flywheel Side At Full Speed. It Can Be Provided from Gear End At Half Speed.
Crankshaft: Designed With Integrated Balance Weight And Is Fitted with Taper Roller Bearings for Long Life & With Provision Of Taper Degree for Flywheel Fitment.
Fuel System: 5 hp agriculture water pump High Speed water pressure pump Diesel Oil Is Supplied To The Fuel Pump By Gravity Feed Through Wire mesh Filter In Tank And Efficient Paper Type Element Filter Before Pump. There Is One More Filter(Inbuilt) in Injector Inlet.
Exhaust-System: A Silencer Of Standard Type (peeper pot) is Fitted For Adequate Silencing.
Air Cleaner: Oil Bath Type, Large Capacity For Efficient Filtration.
Lubrication Oil: 20-40 or Equivalent Grade.
Standard Accessories: water pressure pump Air cleaner, exhaust silencer, starting handle, set of spanners and screw driver.
Optional: To avoid over loading in water pressure pump, provision for head adjustment by variable speed drive.
Starting: Engine Is Designed For Starting By Hand Cranking With The Help Of Starting Handle
